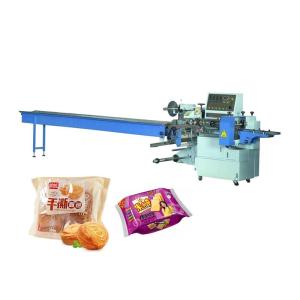

SWF-450 Series High Speed Automatic Flow Wrapping Packaging Machine
The packaging machine packages product by wrapping it in film. The packaging machine has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, At this time the whole packing process is done.
Parameters of Horizontal flow Wrapping Packaging Machine
| Max film width | 450mm |
| Packing Sizes | L:50~600mm, W:20~200mm H:5~110mm |
| Packing Speed | 30~220bags/min |
| Packing material | Poly film, Aluminum foil poly film |
| Power Consumption | 4.7KW Single Phase 220V |
| Machine sizes | LxWxH:5700×1050mm×1700mm |
| Machine weight | About 1000kg |
What is horizontal flow wrapping packaging machine?

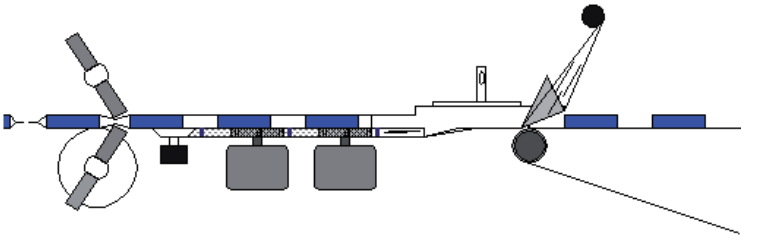

The drawing below shows a horizontal flow wrapper in motion:

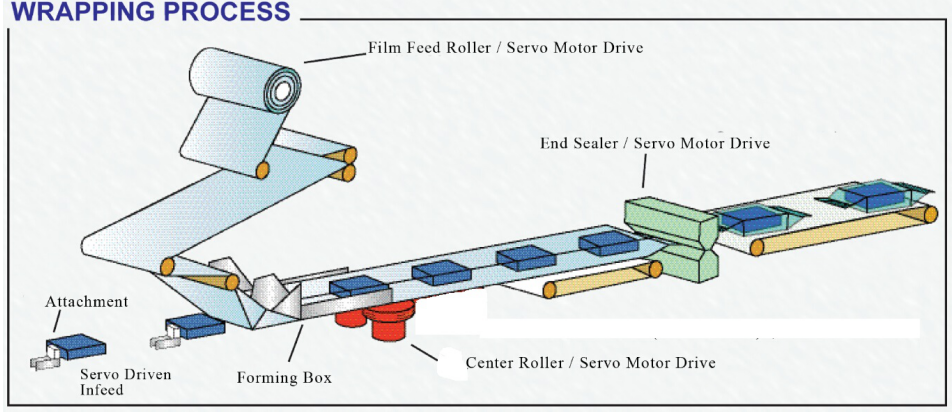

The flow wrapper machine packages product by wrapping it in film. The flow wrapper has an infeed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area. Product is placed on the infeed conveyor. As the infeed conveyor delivers product to the forming area, film is drawn from the film feed assembly into the forming area, where a film tube is formed around the product and a finseal is created. The film tube and the product then are delivered to the cutting head. The cutting head creates the endseals while it cuts apart adjoining wrapped products into individual packages, and delivers the packages to the discharge area. At this time the whole packing process is done.
Application of Horizontal flow Wrapping Packaging Machine:
Single Piece product packaging:
Bread, chocolate en-robed cheese bar, soaps, Popsicle, cookies, waffle, trowel, cotton wool.
Group packaging:
Waffles, meat chops, bakeries, soaps, sponges, biscuits with tray etc.
Non standard products (customization):
Individual spoon, fork, knives, also suit for packing spoon, fork, knife, napkin, toothpick, etc.
Constituent Parts of Horizontal Flow Wrapping Packaging Machine
The packing machine packages product by wrapping it in film. The packing machine has an in-feed conveyor, a film feed assembly, a forming area, a cutting head, and a discharge area.
Auxiliary equipment
Date code printer
Automatic feeder
Features of Horizontal Flow Wrapping Packaging Machine
Adopting the PLC control for a more stable and reliable system with less trouble.
Digital display with packing length, speed and temperature adjustable separately, easy and accurate for use.
Two-way tracking for accurate sealing and cutting Position.
The main technical parameter for film feeding from below flow automatic packing machine.
